SKY 200S

Dimensions

SKY200S

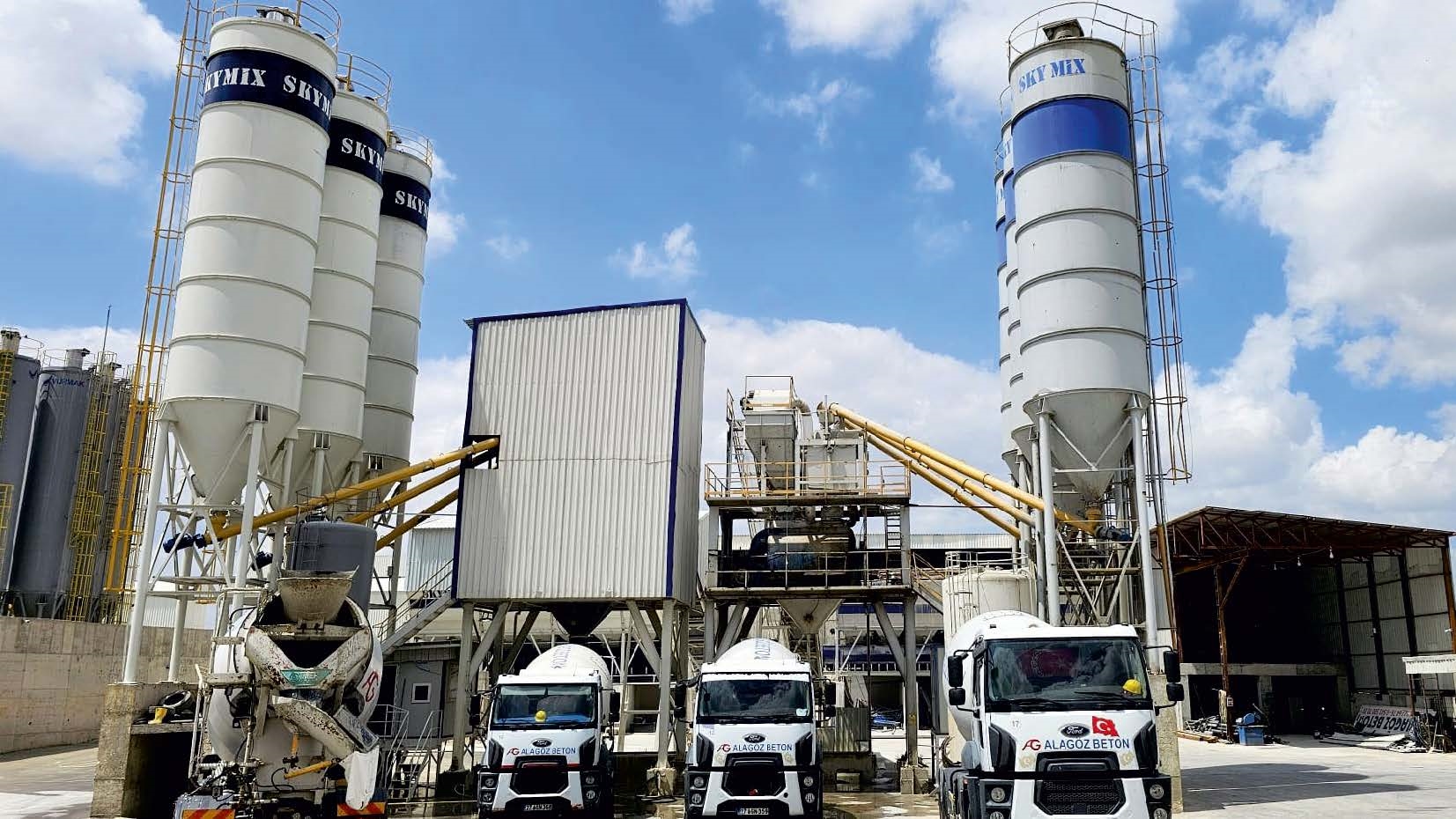

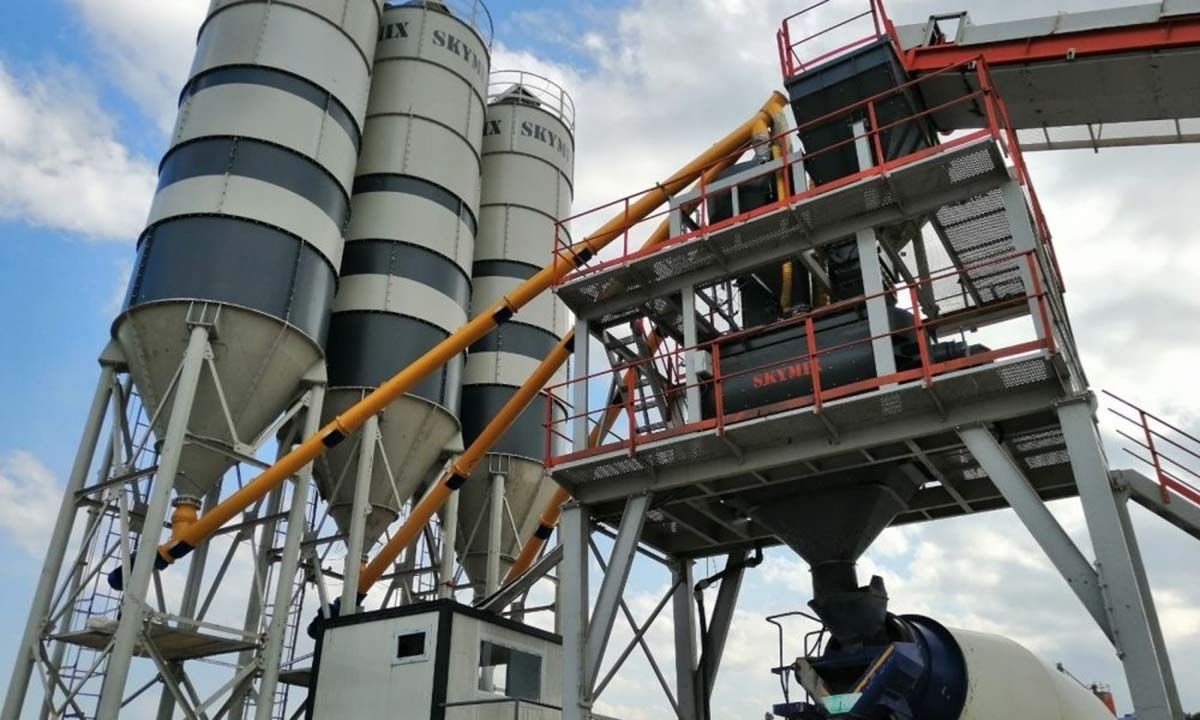

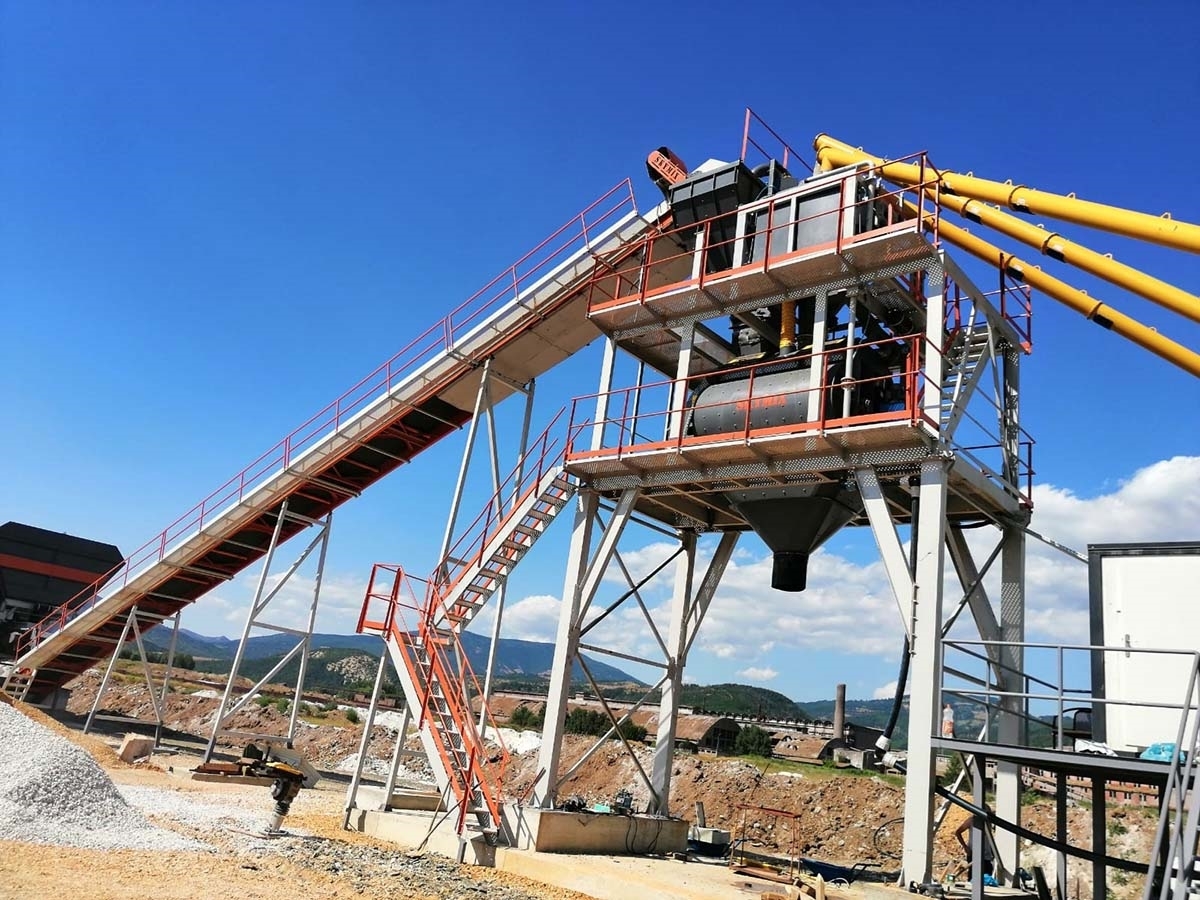

200 m³/hour Stationary Concrete Batching Plants
Feature Value Unit
Plant Capacity (Compacted Concrete) 200 m³/hour
Mixer Capacity (Compacted Concrete) 5.0 m³
Mixer Dry Volume 7.5 m³
Mixer Motor Power 2x90 kW
Number of Aggregate Bins 4-6-8 Units
Aggregate Bin Capacity 40-50 m³
Aggregate Weighing Conveyor 1,200 x 13,000 mm
Mixer Feeding Belt Conveyor 1,200 x 34,500 mm
Aggregate Weighing Capacity 10,000 kg
Cement Weighing Capacity 3,000 kg
Water Weighing Capacity 1,500 L
Admixture Weighing Capacity 50 kg
Cement Screw Conveyor 323 x 12,000 mm
Number of Cement Silos 3 - 4 Units
Cement Silo Capacity 100-150-200-250 Tons
